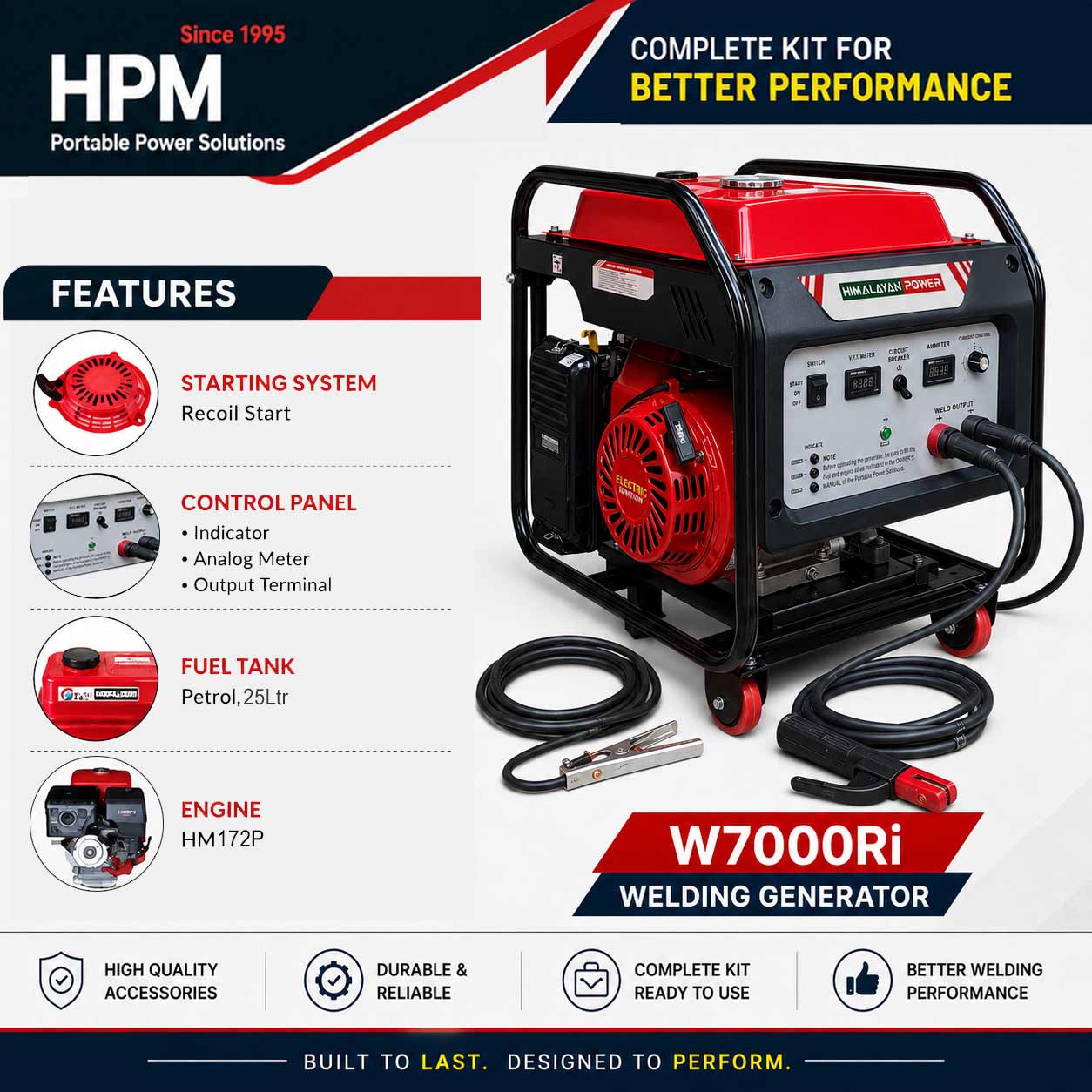

Portable DC Arc Welder Cum Generator,GE-W7000Ri

Portable DC Arc Welder Cum Generator,GE-W7000Ri

( 2 Reviews )

₹119894 ~~₹141475~~

7906007989

Welding Output Current (Duty Cycle60%) : 275 Amps.
Open Circuit Voltage (OCV): 65 Volt
Electrode diameter : 2.6mmto 5.0mm
Starting System : Recoil Start
Fuel Consumption Ltr/Hr. 60 % Duty Cycle : 2.0 Ltr/hr.
Continuous Operating Hour : 13 hr.

Special Highlights & Applications

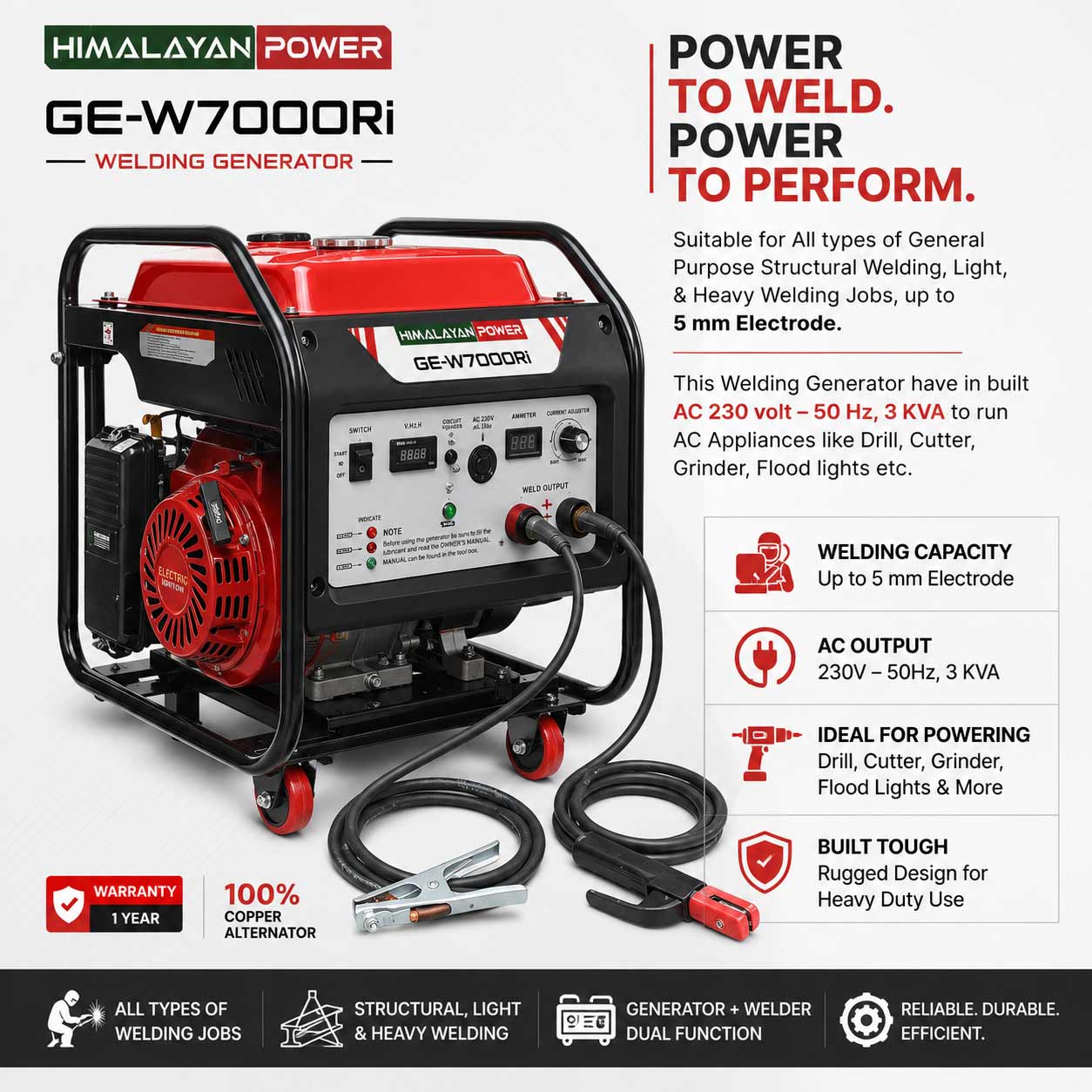

Portable DC Arc Welder Cum Generator Machine Suitable for All types of General Purpose Structural Welding, Light, & Heavy Welding Jobs, up to 5 mm Electrode. This Welding Generator have in built AC 230 volt – 50 Hz,3 KVA to run AC Appliances like Drill, Cutter, Grinder, Flood lights etc.

This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Qty:

Product Information

Rated Welding Output Current (Duty Cycle60%) : 275 Amps.
WorkingVoltage : 20vto35v
OpenCircuit Voltage (OCV) : 65 Volt (Minimum)
Welding CurrentRegulation (Amps) : 50 – 275 AMPS
RectifyingMode : SCR,PhaseControlled3-phase,Rectifying Bridge
MaximumElectrodediameter : 2.6mmto 5.0mm

AC GENERATOR

AC Alternator Type : Brushless with Rear Earth Magnet Rotor
Maximum Ac Output : 3000VA
Rated Power (VA) : 2500VA
Rated Current : 10.5Amps.
AC. Output Voltage & Frequency : 225 Volts ± 10 Volts, Single Phase – 50 Hz
Frequency (Adjustable) : 50to60Hz.
NFB Amps : 10Amps.
Classof Insulation : F

Engine

Model : HM172P
Type : OHV25°Inclined,Single Cylinder,4 strokes, S.I, Forced Air Cooling
Maximum Power : 16.0 hp @ 3600rpm
Bore x Stroke : 92×67 mm
Displacement : 445cc
Starting System : Recoil Start
Ignition System : TCI(TransistorControl Ignition)
Fuel : Standard Petrol
Fuel Tank Capacity : 25 Liters
Fuel Consumption Ltr/Hr. 60 % Duty Cycle : 2.0 Ltr./hr.
Continuous Operating Hour : 13 hr. Aproxx.
Lube. Oil Capacity : 1200 ml.
Lubricating Oil Consumption : 4.3 gm./Hr.

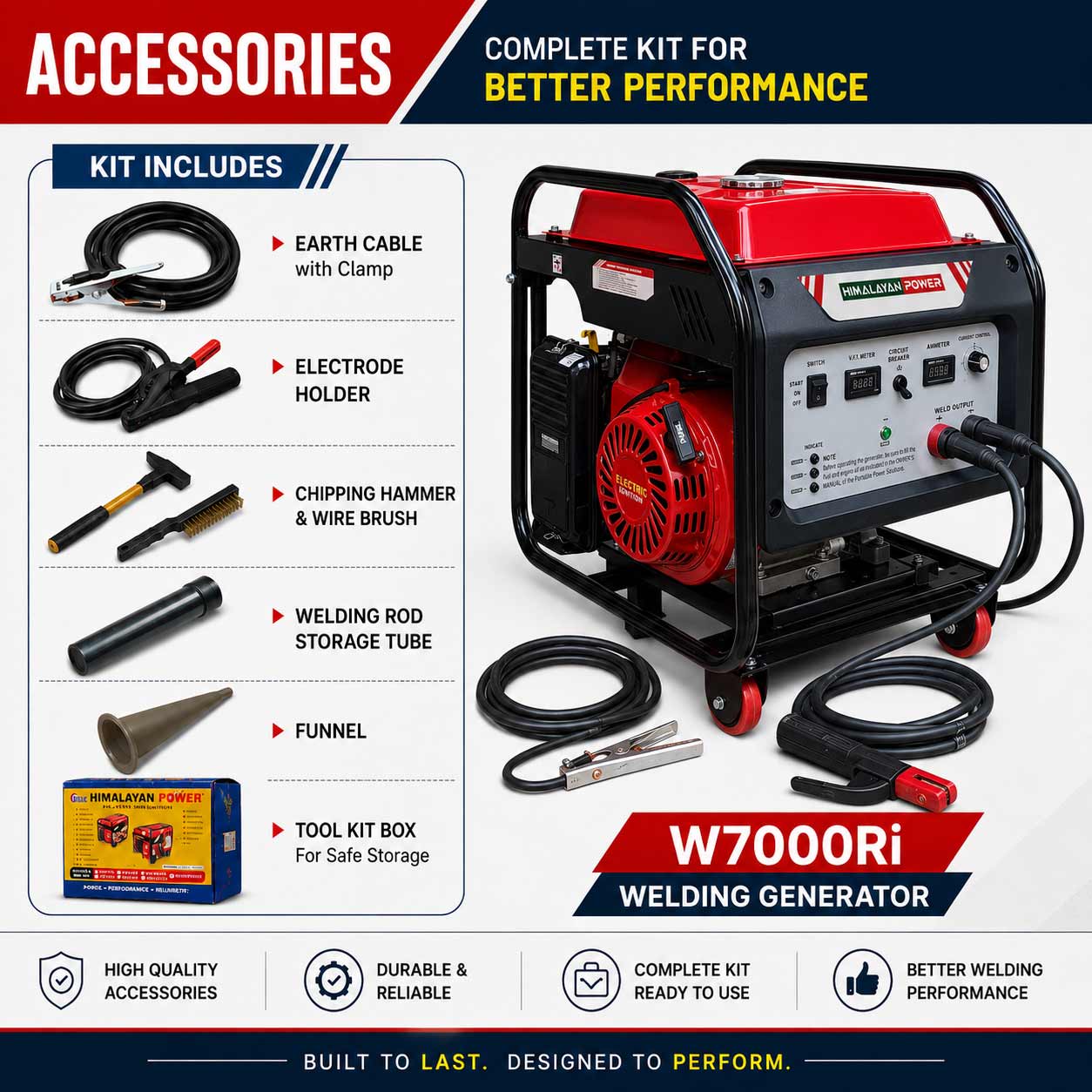

Standard Accessories

AC Plug : 1Pec.
Tool Kit : 1 Set
Welder Holder : 1 Set
Earthing Clamp with 3Mtr. Cable : 1 Set
Oil Funnel : 1 No.
Owner’s Manual : 1 No.

Panel & Other Standard Features

A.C. Circuit Protector : Yes
Volt-Hz-Hour Meter : Yes, Multifunction Digital Meter Provided
DC Welding Amps. Meter : Yes
A C. Output Indicator : Yes
A.C. Overload/ Fault Indicator : Yes
Low Engine Oil Indicator : Yes (Electronic Oil Alert & Indicator)
Fuel Level Gauge: Yes
A.C. Output Sockets : Yes (1 Nos.)
Costar Wheels and handles : Yes (1 Set)
Mono Rail Wheels : Yes (Optional)

Size & Weight

Dimension LxWxH (mm) : 670 x 510 x 670 mm
Dry Weight (Kgs.): 103KG

Above Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specification’s can change without any prior intimation
