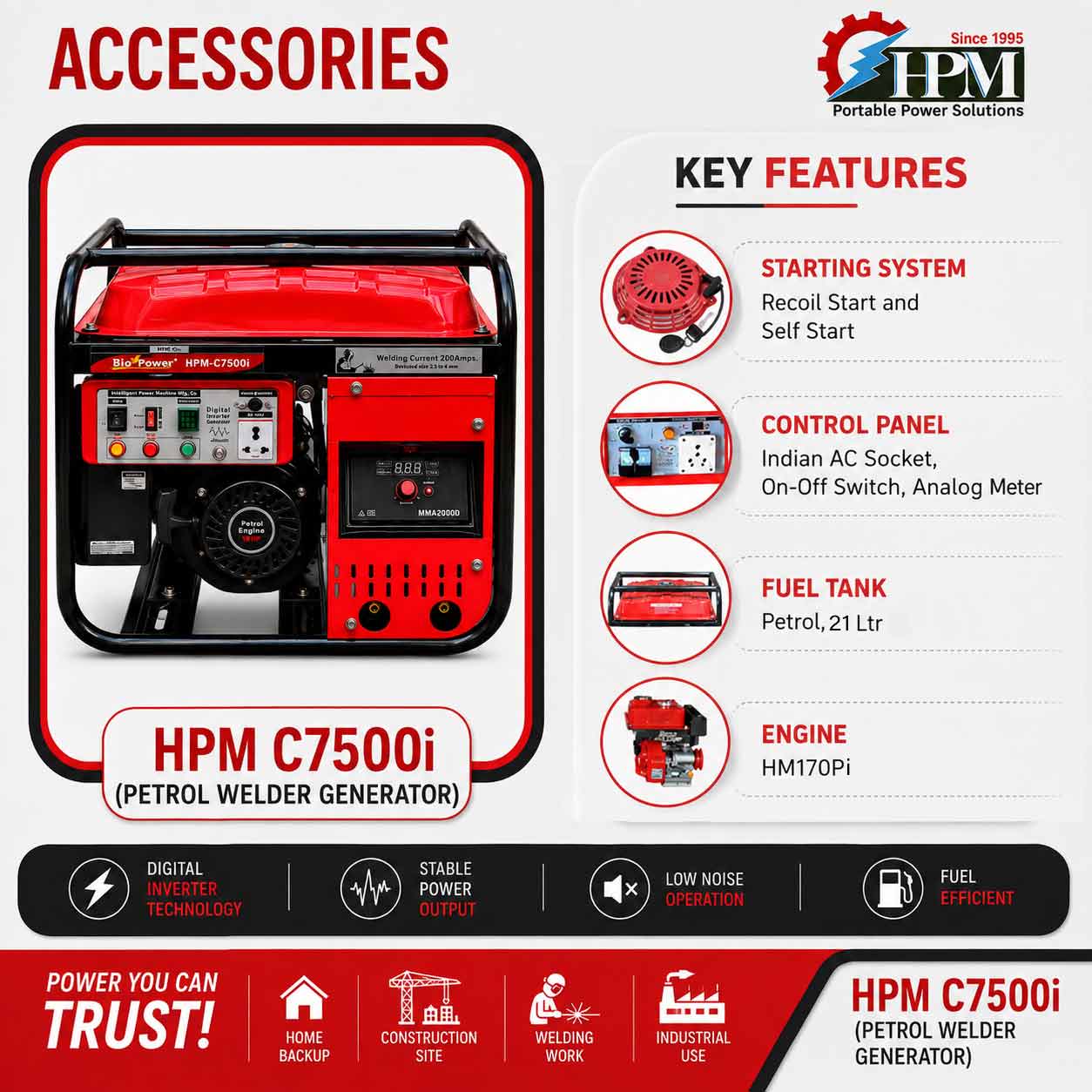

200 Amps, 5.5 KVA AC Welding Generator, HPW C7500i

200 Amps, 5.5 KVA AC Welding Generator, HPW C7500i

( 2 Reviews )

₹101502 ~~₹119772~~

7906007989

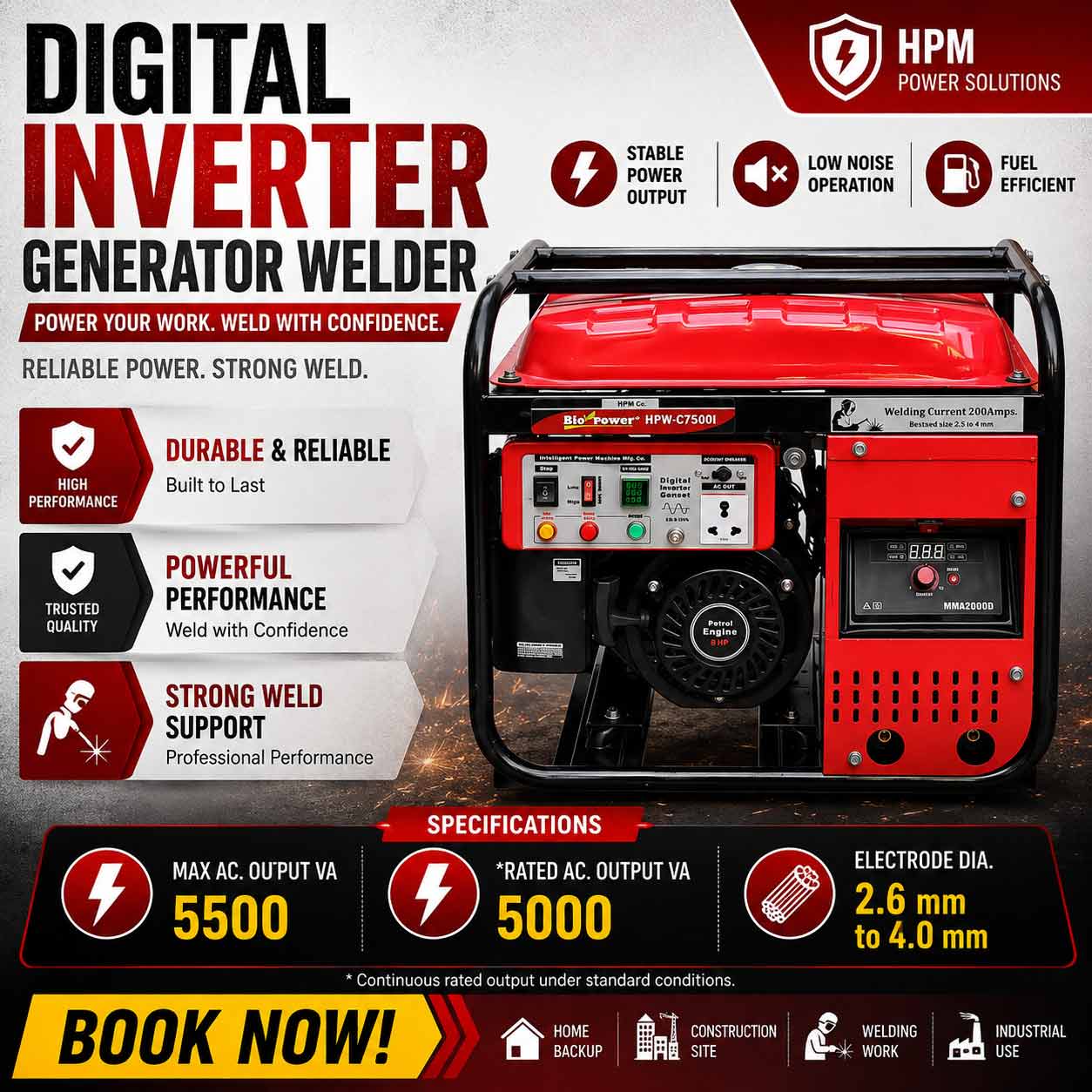

*Max AC. Output VA : 5500
*Rated AC. Output VA : 5000
Electrode Dia.: 2.6 mm to 4.0 mm
Starting System : Recoil Start
Fuel Consumption: Petrol: 1.5 Ltr./hr.
Run time : 15 Hrs.

Special Highlight:

Most suitable for Low , Medium & High Current DC Welding of thin Sheets, Arc Welding (MMA) on MS Sheets / Parts.
AC Generator 5.5 KVA , AC 230 V, 50 Hz Output for Running AC Appliances

This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Qty:

Product Information

Maximum Output (Duty Cycle 60%) : 200 Amps.
Working Voltazge : 20v to 30 v
Open Circuit Voltage : 50 ± 5 Volts
Current Regulation Amps : 50 ± 5 Volts
Rectifying Mode : PWM Inverter (Buck)Technology
Maximum Electrode diameter : 2.6 mm to 4.0 mm

Engine

Model : HM172 Pi
Type : OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling
Maximum Power (Duty Cycle 60%) : 9 HP @ 3600
Bore x Stroke : 72x58 mm
Displacement : 240cc
Starting System : Recoil Start
Fuel : Petrol
Fuel Tank Capacity : Petrol - 21.0 Ltr.
Fuel Consumption # Ltr./Hr : Petrol: 1.5 Ltr./hr.
Continuous Operating Hour : 15 Hrs.
Lube. Oil Capacity : 600ml
Lubricating Oil Consumption : 2.5 gm./Hr.
Sound level (Db) (from 1 meter) : <86Db

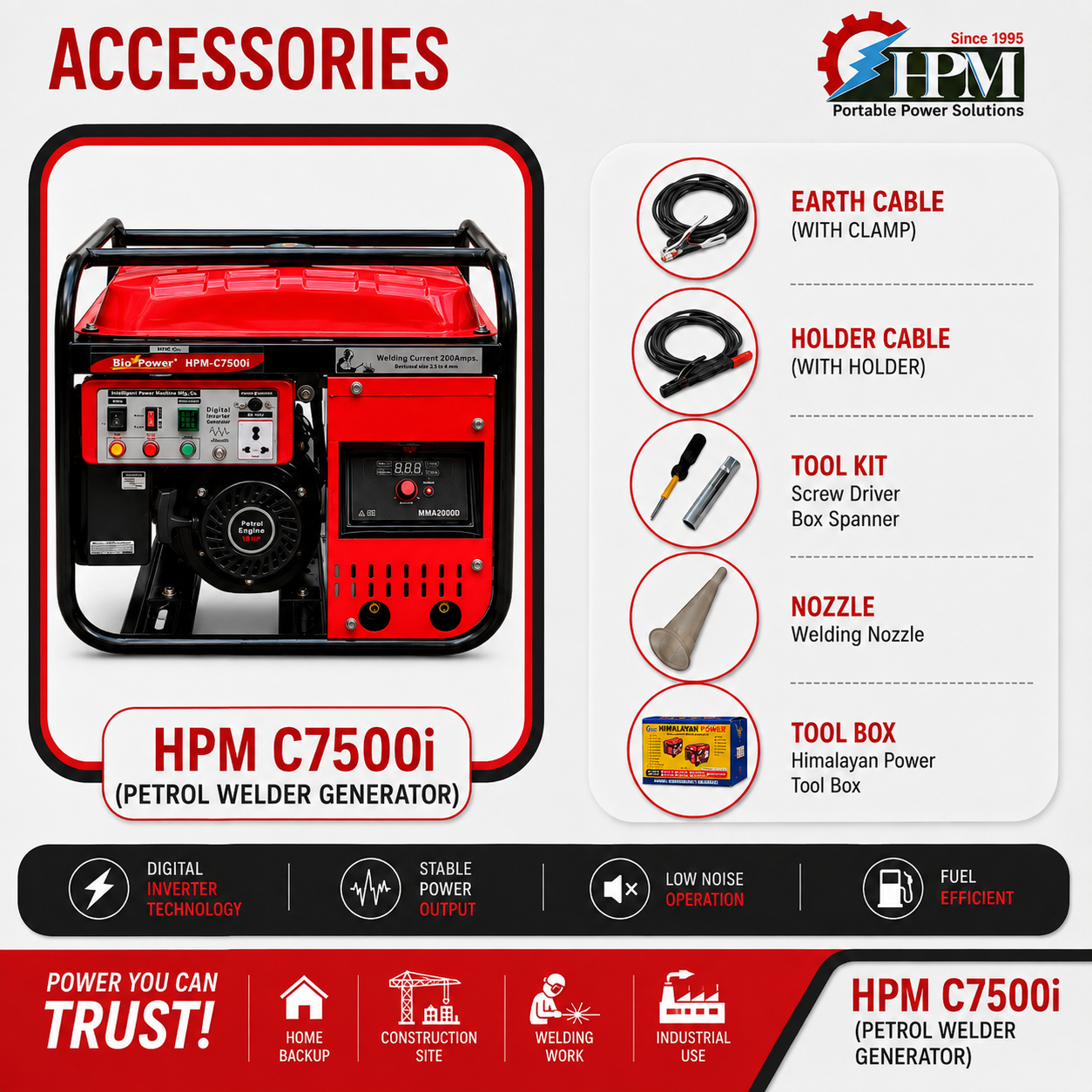

Standard Accessories

AC Plug : 1Pec.
Tool Kit : 1 Set
Welder Holder : 1 Set
Earthing Clamp with 3Mtr. Cable : 1 Set
Oil Funnel : 1 No.
Owner’s Manual : 1 No.

Panel & Other Standard Features

Digital Display : Yes,Volt,Hz,Amp.Meter
Oil Alert System : Yes
Fuel Level Gauge : Yes
Overload Protection (NFB) : Yes
Costar Wheels & Handle Sets : No

Size & Weight

Dry Weight (Kgs.) : 45kg
Dimension LxWxH (mm) : L x 600 W x 452 H x 540

Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation
